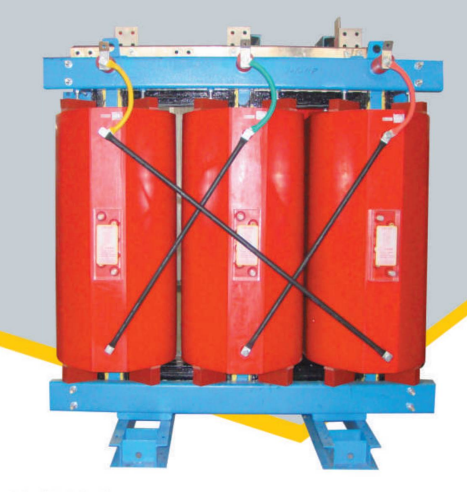

10KV class SC(B)10 'SC(B)11' SC(B)12 series epoxy cast dry transformer

Description

Product/performance characteristics

Need less space;
No special safety measures (fire detection) are required;
Maintenance free;
Long life of transformer;
It can be installed near the electrical equipment reduced line loss (small feed radius);

Due to continuous improvement in design, the use of new materials can achieve the best design

Safe and environmentally friendly

Reduce environmental pollution;
There is absolutely no risk of flammable or polluting material leakage;

Production environment safety (closed system);
Very suitable for wet and polluted areas:
No fire risk:
Flame retardant and self-extinguishing;
High short-circuit resistance;
High overload capability.

Local discharge minimum

The unique coil finishing process makes the coil surface smooth

In case of fire or electric arc, there will be no dangerous gas release

The stepped lap type core is equipped with special segmented cylinder winding with low no-load loss, low no-load current and low noise

The low voltage winding is made of copper foil

High overload capacity - due to the high heat capacity, so there is a high overload capacity transformer insulation system heat class F, the average temperature rise of the winding does not exceed 100K

Overload capacity/technical parameters

The life of a dry-type transformer is particularly related to the overload experienced during its normal life. These overloads can produce temperature fluctuations that degrade the winding insulation due to thermal aging.

If the normal load is less than the rated capacity, then a transformer can operate under certain overload conditions without affecting its life. allow

The multiple and time of allowable overload vary with the initial load rate and the average ambient temperature.

Transformers are manufactured in accordance with IEC60726 and GB1094 standards and operate at rated power under normal ambient temperatures.

- Maximum temperature: +40°C

- Average daily temperature: +30°C

- Average annual temperature: +20°C

6kV, 10kV class 10 type dry non-excitation voltage regulation distribution transformer

Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss (W)	Load loss at different insulation levels (W)			No-load current (%)	short circuit impedance
Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss (W)	B（100℃）	F（120℃）	H(145℃)	No-load current (%)	short circuit impedance
30					190	670	710	760	2.0
50					270	940	1000	1070	2.0
80					370	1290	1380	1480	1.5
100					400	1480	1570	1690	1.5
125					470	1740	1850	1980	1.5
160					540	2000	2130	2280	1.3
200					620	2370	2530	2710	1.3	4.0
250					720	2590	2760	2960	1.1
315					880	3270	3470	3730	1.1
400	6				980	3750	3990	4280	1.0
500	6.3	士5	0.4	Dyn11	1160	4590	4880	5230	1.0
630	10	士 2x2.5		YynO	1340	5530	5880	6290	0.85
630	10.5				1300	5610	5960	6400	0.85
800	11				1520	6550	6960	7460	0.85
1000					1770	7650	8130	8760	0.85
1250					2090	9100	9690	10300	0.85	6.0
1600					2450	11000	11700	12500	0.85
2000					3050	13600	14400	15500	0.7
2500					3600	16100	17100	18400	0.7
1600					2450	12200	12900	13900	0.85
2000					3050	15000	15900	17100	0.7	8
2500					3600	17700	18800	20200	0.7

6kV, 10kV class 11 dry non-excitation voltage regulation distribution transformer

Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss (W)	Load loss at different insulation levels (W)			No-load current (%)	short circuit impedance
Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss (W)	B（100℃）	F（120℃）	H(145℃)	No-load current (%)	short circuit impedance
30					170	670	710	760	1.9
50					240	940	1000	1070	1.9
80					330	1290	1380	1480	1.5
100					360	1480	1570	1690	1.5
125					420	1740	1850	1980	1.3
160					480	2000	2130	2280	1.3
200					550	2370	2530	2710	1.1	4.0
250					640	2590	2760	2960	1.1
315					790	3270	3470	3730	1.0
400	6				880	3750	3990	4280	1.0
500	6.3	士5	0.4	Dyn11	1040	4590	4880	5230	0.9
630	10	士 2x2.5		YynO	1200	5530	5880	6290	0.9
630	10.5				1170	5610	5960	6400	0.9
800	11				1360	6550	6960	7460	0.8
1000					1590	7650	8130	8760	0.8
1250					1880	9100	9690	10300	0.8	6.0
1600					2200	11000	11700	12500	0.7
2000					2740	13600	14400	15500	0.6
2500					3240	16100	17100	18400	0.6
1600					2200	12200	12900	13900	0.7
2000					2740	15000	15900	17100	0.6	8
2500					3240	17700	18800	20200	0.6

6kV, 10kV class 11 dry non-excitation voltage regulation distribution transformer

Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss(W)	Load loss at different insulation levels (W)			No-load current (%)	short circuit impedance
Transformer Capacity (KVA)	High voltage (KV)	High pressure tap range (%)	Low voltage (KV)	Join group label	No-load loss(W)	B（100℃）	F（120℃）	H(145℃)	No-load current (%)	short circuit impedance
30					150	670	710	760	1.7
50					215	940	1000	1070	1.7
80					295	1290	1380	1480	1.3
100					320	1480	1570	1690	1.3
125					375	1740	1850	1980	1.3
160					430	2000	2130	2280	1.1
200					495	2370	2530	2710	0.9	4.0
250					575	2590	2760	2960	0.9
315					705	3270	3470	3730	0.8
400	6				785	3750	3990	4280	0.8
500	6.3	士5	0.4	Dyn11	930	4590	4880	5230	0.7
630	10	士 2x2.5		YynO	1070	5530	5880	6290	0.7
630	10.5				1040	5610	5960	6400	0.7
800	11				1210	6550	6960	7460	0.6
1000					1410	7650	8130	8760	0.6
1250					1670	9100	9690	10300	0.6	6.0
1600					1960	11000	11700	12500	0.5
2000					2440	13600	14400	15500	0.4
2500					2880	16100	17100	18400	0.4
1600					1960	12200	12900	13900	0.5
2000					2440	15000	15900	17100	0.4	8
2500					2880	17700	18800	20200	0.4
